Epoxy Resin Dry Type Distribution Transformer 80 Kva 3 Phase With Triple Winding Coil

Name: Epoxy Resin Dry Type Distribution Transformer 80 Kva 3 Phase With Triple Winding Coil
Brand: HENTG Power
Price: 1 USD

Buy cheap Epoxy Resin Dry Type Distribution Transformer 80 Kva 3 Phase With Triple Winding Coil product

Place of Origin : Hunan, China

Brand Name : HENTG Power

Model Number : SC(B)13

Certification : CE

MOQ : 2 sets

Type : power transformer, distribution transformer, Dry TypeTransformer

Frequency : 50Hz, 60Hz

Winding Material : Copper

application : Power

Phase : Three

Coil Structure : Layered Winding

Coil Number : Triple-winding coil

Input Voltage : 10kV

Output Voltage : 400V

Cooling Method : Fan System

Product name : Three Phase Transformer

Application : Power Distribution System

Material : Copper Winding

Vector Group : Dyn11/Yyn0

Advantage : Customer's Requested Specifications

Transformer type : Dry Isolation

Usage : Power Electronic

Insulation Material : epoxy resin

Standard : IEC60076

Insulation : B Class

Original : China

Item : indoor dry type transformer

Materials : aluminum/copper

Hs Code : 85043190

Voltage : up to 35kv

Noise Level : Less than 60 dB

Product Application : Power Distribution System

Capacity : 30-2500kVA

Highest Machinery Speed : 140m/min

Contact Now

Epoxy Resin Dry Type Distribution Transformer 80 Kva 3 Phase With Triple Winding Coil

Product Specifications

Attribute	Value
Type	power transformer, distribution transformer, Dry TypeTransformer
Frequency	50Hz, 60Hz
Winding Material	Copper
Application	Power
Phase	Three
Coil Structure	Layered Winding
Coil Number	Triple-winding coil
Input Voltage	10kV
Output Voltage	400V
Cooling Method	Fan System
Vector Group	Dyn11/Yyn0
Transformer type	Dry Isolation
Insulation Material	epoxy resin
Standard	IEC60076
Noise Level	Less than 60 dB
Capacity	30-2500kVA

Product Description

The SCB13 80kVA epoxy-resin cast dry-type isolation transformer is designed to meet the demands of modern, sensitive electrical environments. Featuring compact dimensions, low noise, and high fire resistance, it's ideal for applications such as medical devices, communication equipment, automation systems, and precision instruments. This transformer ensures galvanic isolation between primary and secondary circuits, significantly reducing electrical interference and enhancing equipment safety.

Epoxy Resin Dry Type Distribution Transformer 80 Kva 3 Phase With Triple Winding Coil

Technical Specifications

Rated capacity (KVA)	Vector Group	Voltage Combination	No-load loss	Load loss	No-load current	Impedance
30	Yyn0 / Dyn11	10 6.3 6	135	640	2	4.0
50			195	900	2
80			265	1240	1.5
100			290	1410	1.5
125			340	1660	1.3
160			385	1910	1.3
200			445	2270	1.1
250			515	2480	1.1
315			635	3120	1
400			705	3590	1
500			835	4390	1
630			965	5290	0.85	6.0

Key Features

Compact Size: Ideal for tight spaces and indoor environments
Epoxy Resin Insulation: High dielectric strength, moisture-proof and dust-resistant
Electrical Isolation: Eliminates ground loops and reduces EMI/RFI
Low Noise Operation: Quiet enough for offices, labs, and medical use
Eco-Friendly Design: Oil-free, low-maintenance, zero pollution

Benefits

Improved Equipment Lifespan through stable power supply
Lower Operating Costs with high energy efficiency
Quiet & Safe Operation ideal for residential or office spaces
Peace of Mind with long-lasting, maintenance-free design

Applications

Office Buildings
Hospitals
Telecommunication Rooms
Precision Laboratories
Industrial Control Panels
Educational Facilities

About HENTG POWER

Who are we?

HENTG POWER is a professional designer, manufacturer and installer of power system solution around the World, was founded in 2011, occupies 100,000 square meter. specializing in reliable, high-performance solutions for global power systems.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment, We will provide QC & test reports. We accept FAT(Factory Acceptance Test). Factory can manufacture oil type and dry type distribution transformer, max 500KV 480MVA power transformer, GIS, switchgear, substation, based on ANSI/IEEE/DOE2016/CSA/IEC60076 standard. We will provide you with the guarantee service of over 2 years.

Why choose us?

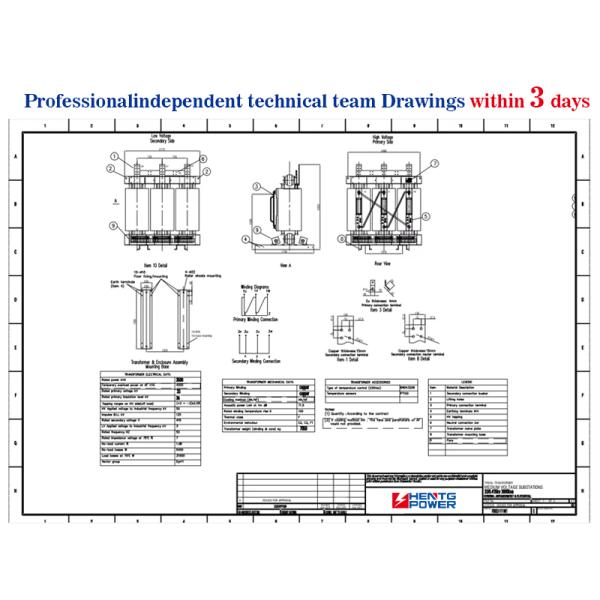

We have the professional and independent drawing team and technical team, It is expected that we can confirm all the contents on the drawings with you within 7 days. we have a professional technical team with 30+ senior engineers offer 24 hours online service and response within 30 min.

What services can we provide?

Accept OEM, business payment are negotiated.
